Westside Pumping Plant Replacement Project

Project details

The Westside Pumping Plant Replacement Project includes replacement of existing EBMUD facilities and construction of new and replacement pipeline, as described below. The project will replace critical aging water distribution facilities that have reached the end of their useful lives to increase system reliability and operating efficiency, and to improve water quality operations.

Pipeline Replacement

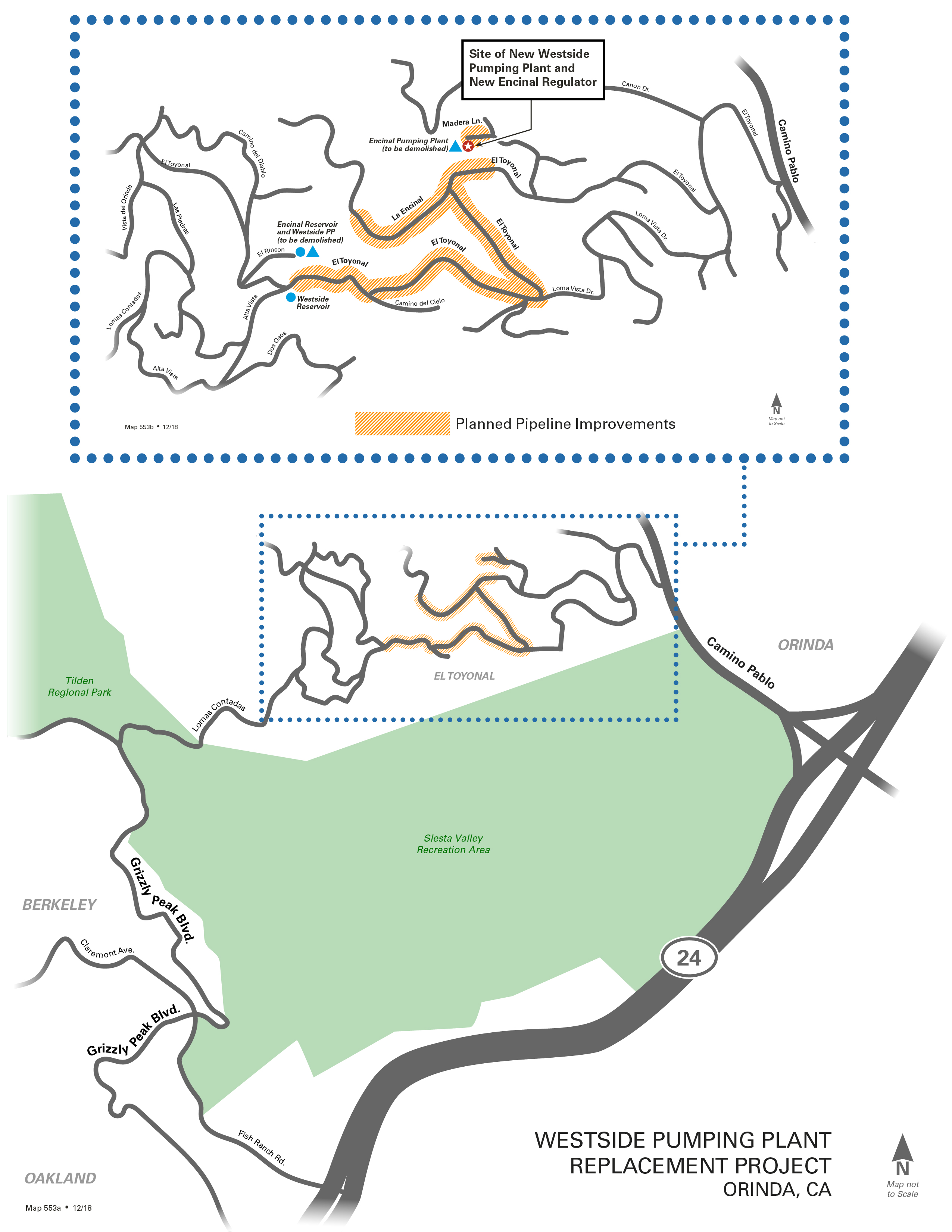

Approximately 6,600 feet of new and replacement 12-inch discharge pipeline will be installed as part of this project in El Toyonal and La Encinal. Approximately 300 feet of new two-inch pipeline will be installed in Madera Lane from Vallecito Lane to 6 Madera Lane.

Facilities Replacement

EBMUD plans to replace the existing 0.5-million-gallon-per-day (MGD) Encinal Pumping Plant (PP) and 0.3-MGD Westside PP with a new 0.6-MGD Westside PP. The new Westside PP will be constructed at 4 Madera Lane, the site of the existing Encinal PP. The Encinal PP will be demolished. At 20 El Rincon, both the existing Westside PP and the existing 0.2-million-gallon (MG) redwood Encinal Reservoir will be demolished. The Encinal Reservoir will be replaced with a new Encinal Regulator, to be housed within the new Westside PP.

Construction and demolition of the facilities is anticipated to start in summer 2021 and last approximately two years.

Project schedule and work hours (Updated 11/17/20)

  • Work hours are Tuesday to Friday from 7:00 a.m. to 6:00 p.m with traffic impacts between 8:00 a.m. to 6:00 p.m.
  • Crews will arrive at the site at 7 a.m and begin preparing to set up the work areas. Work and road closures will begin at 8:00 a.m.
  • Work is scheduled to start on El Toyonal between Alta Vista and Loma Vista on June 30, 2020, and last until October 2, 2020.
  • Work on El Toyonal between Loma Vista and La Encinal is planned to start on October 6, 2020 and last until December 17, 2020.
  • Work on La Encinal and a portion of El Toyonal between La Encinal and 121 El Toyonal is planned to start in December 29, 2020 and last until January 22, 2021.
  • There will be no road work on Mondays to allow for garbage pick-ups.
  • Final paving is planned for Spring 2021.

* Note: Schedule is subject to change if the Orinda Unified School District re-opens campuses for in-person student attendance.

Road Closures

Partial and/or street closures will be required during portions of the construction. Traffic control plans have been submitted and approved by the City of Orinda. Standard construction environmental and safety practices applicable to all EBMUD construction projects have been incorporated into the project. These standard practices minimize impacts to the public resulting from EBMUD construction projects.

Access will be maintained for residents living along the construction work zone and impacted side streets. When work is being performed directly in front of a section of homes, residents will park in a designated area.  Residents will then be walked safely through the work zone by a crew member (maintaining a minimum of six feet of distance). Staff will be coordinating directly with residents regarding their needs as the work zone approaches their home and will provide advance notice of the work. We do not anticipate being directly in front of any section of homes for longer than two weeks. Traffic controls will allow residents access to their homes during the remaining construction.

Residents that live outside of the work zone will be required to detour around Grizzly Peak/Highway 24 or Camino Pablo/Highway 24 during Project working hours on El Toyonal between Alta Vista and Loma Vista.

Updated Pipeline Schedule

See "Updated Project Schedule and Road Closure Figures" PDF in the "Published Studies and Other Resources" section below for road closure limits and detour maps.

Phase 1 - Road Closure
El Toyonal - Alta Vista to Loma Vista
June 30, 2020 to October 2, 2020
See slides 1, 2 and 3 for the Phase 1 road closure limits and detour map

Phase 2 - Road Closure
El Toyonal - Loma Vista to La Encinal
October 6, 2020 to December 17, 2020
See slides 1 and 4 for Phase 2 road closure limits and detour map

There will be no work done on Wednesday, November 11, 2020 for Veterans Day Holiday.
There will be no work done on Thursday, November 26 and Friday, November 27, 2020 for the Thanksgiving Holidays.
There will be no work done for the week of Christmas which is Monday December 21 to Friday December 25, 2020.

Phase 3 - Road Closure
35 La Encinal to 121 El Toyonal
December 29, 2020 to January 22, 2021
See slides 1, 5, and 6  for Phase 3 road closure limits and detour map

There will be no work done on Friday, January 1, 2021 in observance of the New Years holiday.

Water Service Interruption

Construction of replacement pipelines will take place with the existing pipelines still in service. Short shutdowns and minimal interruptions in water service will occur when new pipelines are connected to existing pipelines and when service laterals are transferred from the existing to the new pipelines. Crews will notify you, in person or with a door hanger, regarding any planned water service interruption to your property. After a service interruption, there may be air in the pipes that may loosen particles in your home plumbing. Close your toilet water supply valves, and then run water from your front hose bib, bathtub and/or cold water faucets for 1-3 minutes which will dispel any air or loosened particles from your household pipes. If any water quality issues remain after flushing, please call us.

Paving

The asphalt paving applied daily is temporary and is designed to provide a safe road surface during construction. Final paving occurs after pipeline work is completed. It may take up to 30 days or longer before final paving is completed.   Watch a video on how EBMUD paves streets following pipe replacements.
